NSTF EMC Facilities

26 Nov 2018

Yes

-

Yes

Page Image

Page Content

​NSTF EMC Chamber section: Chamber size 18 m x 19 m x 13m (H) Door size 6m (W) x 10 m (H) High Power Wall 3 W/cm2 Testing  Standards ECSS-E-ST-20-70C   MIL-STD-461 Frequency range 80 MHz to 40 GHz Crane 2 ton Fire suppression system Reduced oxygen	​

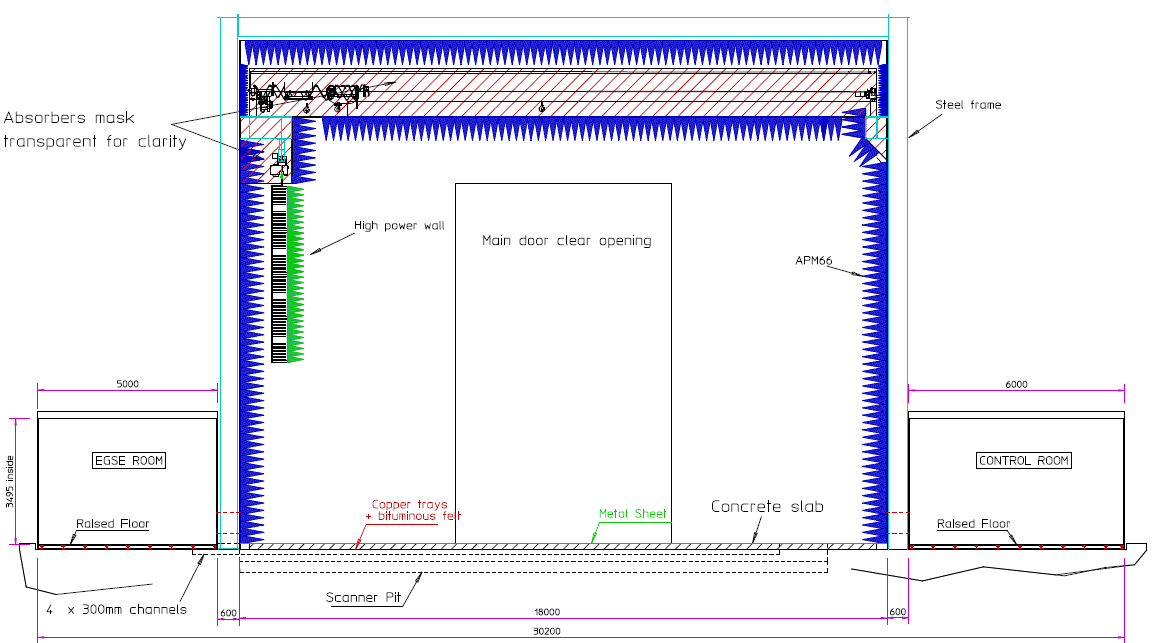

​	​ EMC Chamber Section View
The planar scanner is located inside the EMC chamber, and when not in use can be moved to one side to maximise the available area for EMC testing. Scan Area 12 m x 12 m Measurement Range 500 MHz to 76 GHz Z planarity < 0.1 mm Orientation Vertical	​

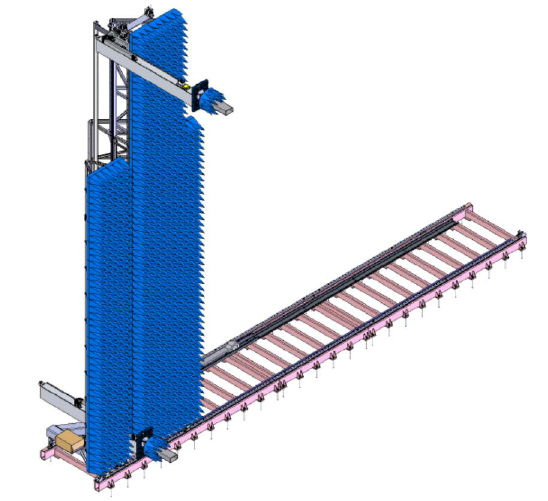

​	​ Planar Near Field Scanner (PNFS)
