Airbus DS Portsmouth - Vibration Facilities
15 Mar 2018
Yes
-





​Airbus DS Portsmouth has a range of shakers with advanced digital control and analysis systems able to test a wide range of products ranging from component level, to large payloads of several tonnes.

Yes

​​​​V964 Vibrator


The shakers can handle thrust levels up to 160kN, allowing a great deal of flexibility to meet customer requirements. Test procedures are tailored to suit the specific test needs of a product. Complex test profiles and levels can be achieved to suit each individual unit. The shakers are driven by sophisticated digital controllers capable of sine, random and shock profiles in three dimensions. Multiple channels of data may be recorded and analysed in real time from the control room. The latest system allows up to 64 channels of data to be analysed simultaneously. The cleanliness environment is ISO 8 (100,000), with moveable hood dimensions 4m x 3.4m x 4.1m high.

All facilities are available for hire. Enquiries to: test-portsmouth@airbus.com   		​

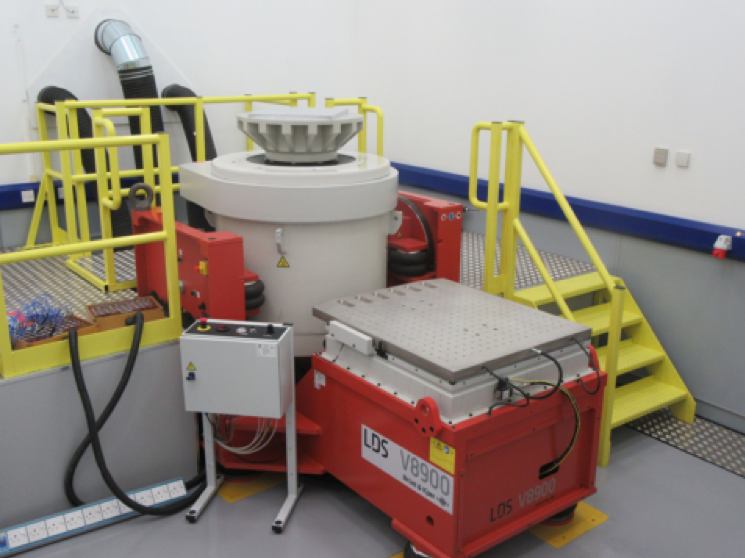

The B&K V8900 Vibrator
​B&K V8900 Vibrator​Capabilities:
  • Maximum Thrust Sine : 80kN
  • Maximum Thrust Random: 76kN
  • Frequency Range: 5 - 3000 Hz
  • Maximum Acceleration: 100g
  • Maximum Displacement: ± 50mm
  • Hydrostatic Slip Table: 0.9m x 0.9m
​Derritron VP1200 Vibrator ​Capabilities:
  • Maximum Thrust: 55,600 N
  • Frequency Range: 5 - 3000 Hz
  • Maximum Acceleration: 100g
  • Maximum Displacement: ± 12mm
  • Hydrostatic Slip Table: 0.61m x 0.61m
​Ling Dynamics V964 Vibrator ​Capabilities:
  • Maximum Thrust: 75,260 N
  • Frequency Range: 5 - 3000 Hz
  • Maximum Acceleration: 100g
  • Maximum Displacement: ± 12mm
  • Hydrostatic Slip Table: 0.61m x 0.61m
  • Head Expanders: up to 0.762m Diameter
​Ling Dynamics V980 Vibrator ​Capabilities:
  • Maximum Thrust: 160,000 N
  • Frequency Range: 5 - 2000 Hz
  • Acoustic Facilities
  • Maximum Acceleration: 100g
  • Maximum Displacement: ± 12mm
  • Hydrostatic Slip Table: 1.525m x 1.525m
  • Head Expanders: up to 1.22m Diameter
​M+P International VXI Controller No1 ​Capabilities:
  • 32 Channel Analysis System
  • Sine, random and shock control and analysis.
​M+P International VXI Controller No2 ​Capabilities:
  • 64 Channel Analysis System
  • Sine, random and shock control and analysis.
